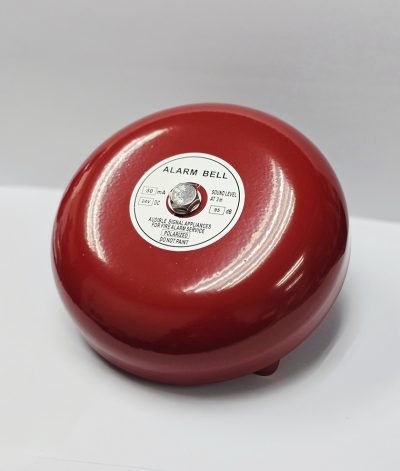

SR Series Fire Alarm Bell
SR Series
Alarm Bell is the accessory for special use in fire alarm system and security system. When confirming the fire, the alarm panel can be switched by panel to announce the fire situation.
Alarm Bell is made by iron aluminium featuring with high sound level and easy installation. By being equipped with good design on crank and pitman driven by motor, the bell will give off alarm with higher reliability and low current consumption.
Features
- For indoor use only
- Red colour gong
- Low current draw
- High dB output 3m range
- Reliable performance
- Polarised
- Easy installation & Low maintenance
- Use for Fire Alarm & General Signalling
| Specification | |
|---|---|
|
Operating Voltage |
DC24V ± 5% |
|
Operating Current |
≤ 50mA |
|
Sound Output Level |
≥ 85dB |
|
Operating Humidity |
(0 - 95) % RH, non condensing |
|
Operating Temperature |
(0 - +65) ºC |
|
Dimension |
6” 150mm DIA 150mm x 61mm |
Installation & Test
Installation: Alarm Bell includes bell and base. First, fix the base on wall, connect the wire from the bell to the power, and then install the bell to the base.
Test: Switch on power to test the alarm bell whether operating is proper.
