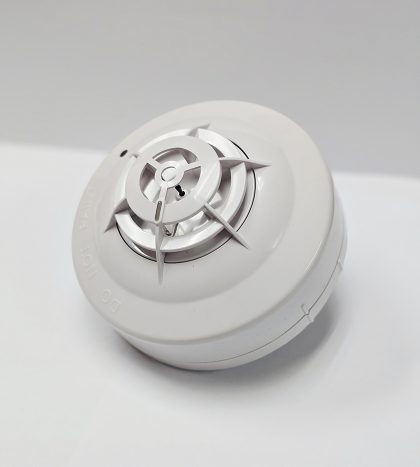

Conventional Heat Detector
HD-10
1148b / 01
BOMBA APPROVED
This model HD-10 conventional type Heat Detector (hereinafter called the detector) is suitable to be used in both Commercial and Industrial buildings. The detector is designed to be compatible with most major brands of Conventional Fire Alarm Panels.
With a combination of detecting Rate-of-Rase and Fixed Temperature for higher safety, this detector is ideal for general fire detection purposes.
Standard Features
- Wide operating voltage for both Fire & Security System.
- Error free non-polarized zone input termination.
- Optional Detector Head locking mechanism incorporated.
- Output for Remote LED indication provided.
- Aesthetically pleasing Low-Profile design.
- Fire Retardant ABS plastic body (UL94V-0 Standard).
- Micro-processor-based circuitry with 3 times alarm verification before activation, reducing false alarm.
- Twin colour LED indicator, with “GREEN” blinking for Normal Operation and “RED” for Alarm Status.
- Made in Singapore under stringent ISO 9001 Quality Management System.
Specification
| Electrical | |
|---|---|
|
Normal Rated Voltage |
24VDC |
|
Operating Voltage |
9.6 ~ 30VDC |
|
Typical Quiescent Current (24V) |
≤ 35uA |
|
Typical Alarm Current (24V) |
18 ~ 22mA max. (Typical 20mA) |
|
Operating Temperature |
-10°C ~ 50°C |
|
Operating Humidity Range |
0 ~ 95% non-condensing @ 40°C |
|
Remote LED Output Current |
20mA max. |
|
LED Operation |
GREEN LED - Flashes when polled RED LED - Flashes when in alarm |
| Physical | |
|---|---|
|
Color |
White |
|
Material of Body |
ABS Plastic (UL94V-0 Flammability Test Standards) |
|
Detector Head Dimensions |
100mm (W) x 44mm (H) |
|
Based Dimensions |
100mm (W) x 8mm (H) |
|
Weight |
85g (Head)
143g (with Base DB 6) |
Regulations & Compliances
Ingress Protection IP-42
Comply with EN54 Part 7
LPCB Approval
Bomba Approval
