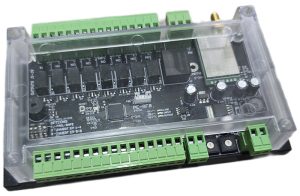

Wireless I/O Module

PE-RF-8

PE-RF8 is an 8-channel RF control module designed for stable and efficient signal transmission between control panels. Built for industrial environments, it supports Master–Slave configuration with flexible relay output settings and simple hardware-based addressing.

The module provides stable RF communication within a 1 km radius (open area) and can achieve extended trans- mission up to 3 km, depending on environmental conditions, with possible minor signal interruption at longer distances.

8 Dry Contact Inputs

Monitor multiple field signals simultaneously.

8 Relay Outputs (NO/NC Selectable)

Jumper configurable to match application requirements.

Master / Slave Configuration

Quick setup via DIP switch selection.

Adjustable Frequency Channel

LED Status Indicators

Real-time communication and activity monitoring.

24VDC Industrial Power Input

Compatible with standard automation panels.

Suitable for

Industrial automation systems
Fire alarm panel
Gas release panel
Remote control panels
Security monitoring systems
Factory signal transmission

Technical Specification

General

Item	Specification
Model	PE-RF8
Product Type	8-Channel RF I/O Module
Communication	RF + CAN
Power Supply	24VDC

Output Specification

Item	Details
Output Type	Relay
Channel	8
Configuration	Jumper Selectable NO/NC

Input Specification

Item	Details
Input Type	Dry Contact
Channel	8
Function	Signal Detection & RF Transmission

Configuration Settings

DIP Switch

Switch	OFF	ON
1	Slave	Master
2	Slave Transmit OFF	Slave Transmit ON
3	Reserve	Reserve
4	Mute	Beep

LED Indicators

LED	ON	OFF
Link	RF Busy	RF Ready
INPUT	RF Receive Busy	RF Receive Complete
OUTPUT	RF Transmit Busy	RF Transmit Complete

Rotary Switch

Item	Function
A1	Module ID (Master = 0)
A2	Frequency Channel
